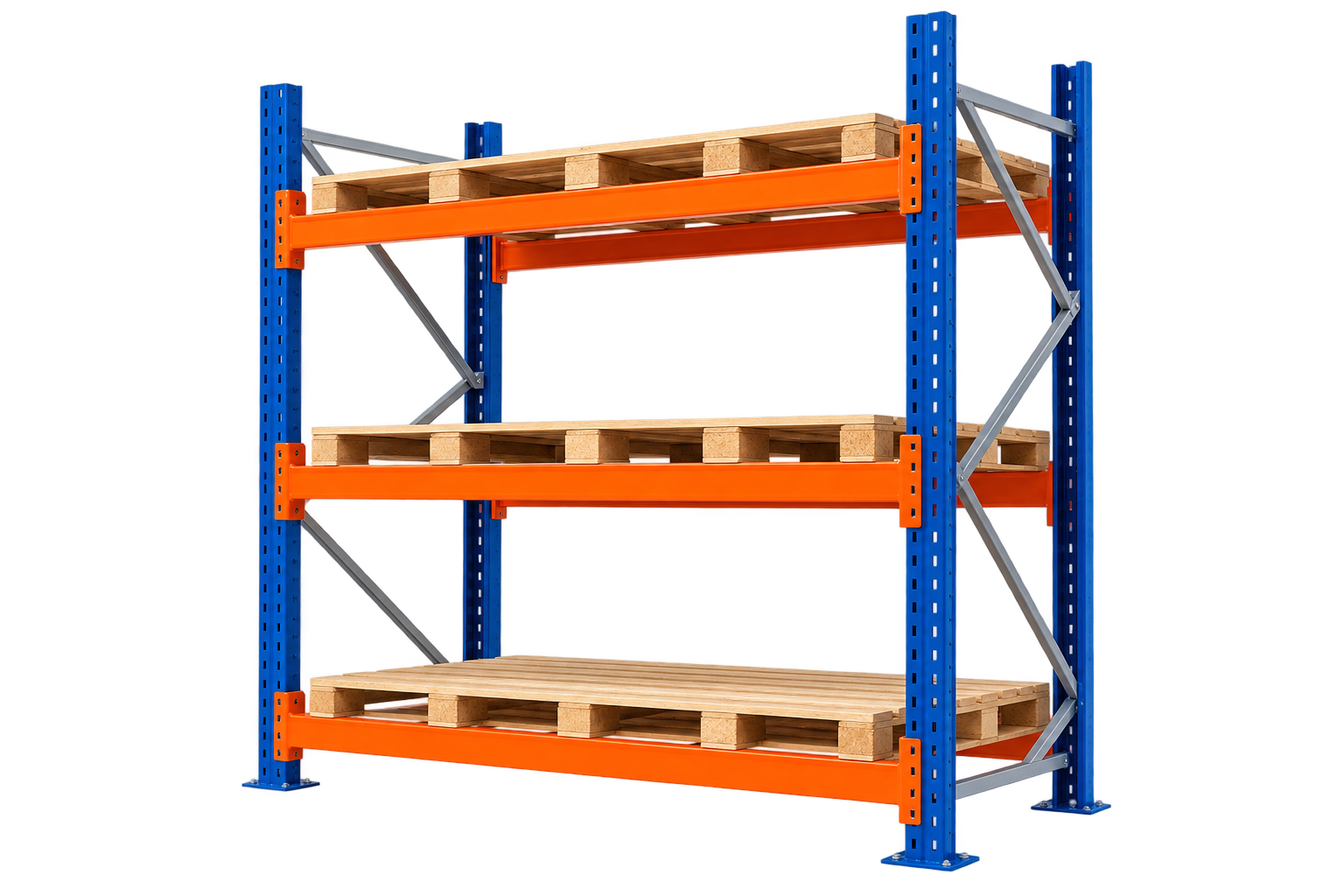

Pallet Racks

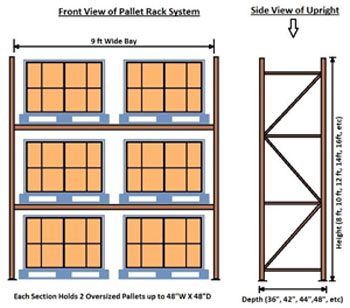

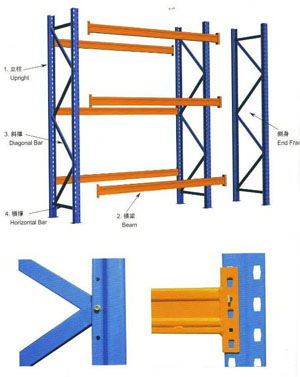

We are supplier of Pallet Racks in Mumbai, India for material handling storage, designed to store materials on pallets for storage of palletised materials in horizontal rows with multiple levels, it consists of two basic components-Upright Frames and Beams. Beams are the horizontal members on which loads are stacked and Upright Frames are the vertical members which support the beams and transfer the load to floor.

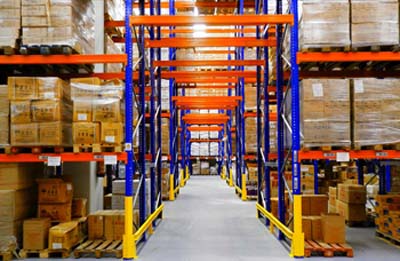

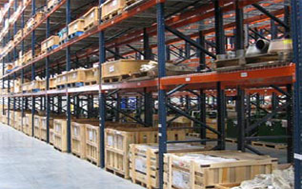

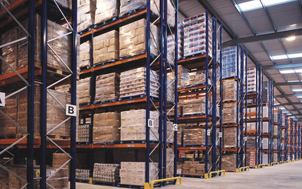

Pallet Racks is used in warehouses where good are stored on pallets, Pallet Racks saves cost and improves stock management which help access each pallet separately. Pallet Racks increases warehouse space and storage capacity for loading pallets, which provides easy forklift access to palletized boxes, crates and containers.
Specification of Pallet Racks
Upright Frame: Main Module & Add on Module
| Height in mm | Depth Size in mm | Max load in kgs |
|---|---|---|
| 2000–7000 | 800–1200 | 10000–18000 |
Beams
| Size (mm) | Length (mm) | Capacity (kg) |
|---|---|---|
| 100mm | 1800 | 2930 |
| 2300 | 2350 | |
| 2700 | 1850 | |
| 120mm | 1800 | 3390 |
| 2300 | 3170 | |
| 2700 | 2740 | |
| 3000 | 2480 | |
| 140mm | 1800 | 3780 |
| 2300 | 3260 | |
| 2700 | 2960 |
Standard Pallet Sizes (mm)
| 800 x 1200 |
| 1000 x 1200 |
| 1200 x 1200 |
Two Pallets to be loaded in each level.
Optional: Deck Panels can be used for lighter manual load.
Enquiry (Pallet Racks)
Kindly fill up the enquiry form and take the screen shots and mail to us on apextechstorage@gmail.com
- Pallet Racks — For bulk storage
- Loading capacity 1000 kg to 3000 kg per level
- Upright Frame (height between 2000mm–7000mm)
- Length of Beam (Standard length: 1800mm, 2300mm, 2700mm, 3000mm)
- Depth (Standard 800mm–1200mm)
- Total Number of Loading Level
- Number of Pallets per Level
- Weight per Loading level
- Center Supports in Level Panels Channels
- Quantity of Main Rack
- Quantity of Add on Rack no.
- Total Quantity of Rack
